CLAAS Cebis A030 CEMIS 1200 2669516.3 Terminal 12" w/ CLAAS A167 Trimble NAV-900 002251469.0 108993

CLAAS Cebis A030 CEMIS 1200 2669516.3 Terminal 12" w/ CLAAS A167 Trimble NAV-900 002251469.0 108993

Normaler Preis $2,480.00 USD
Normaler Preis Verkaufspreis $2,480.00 USD
Sale Ausverkauft

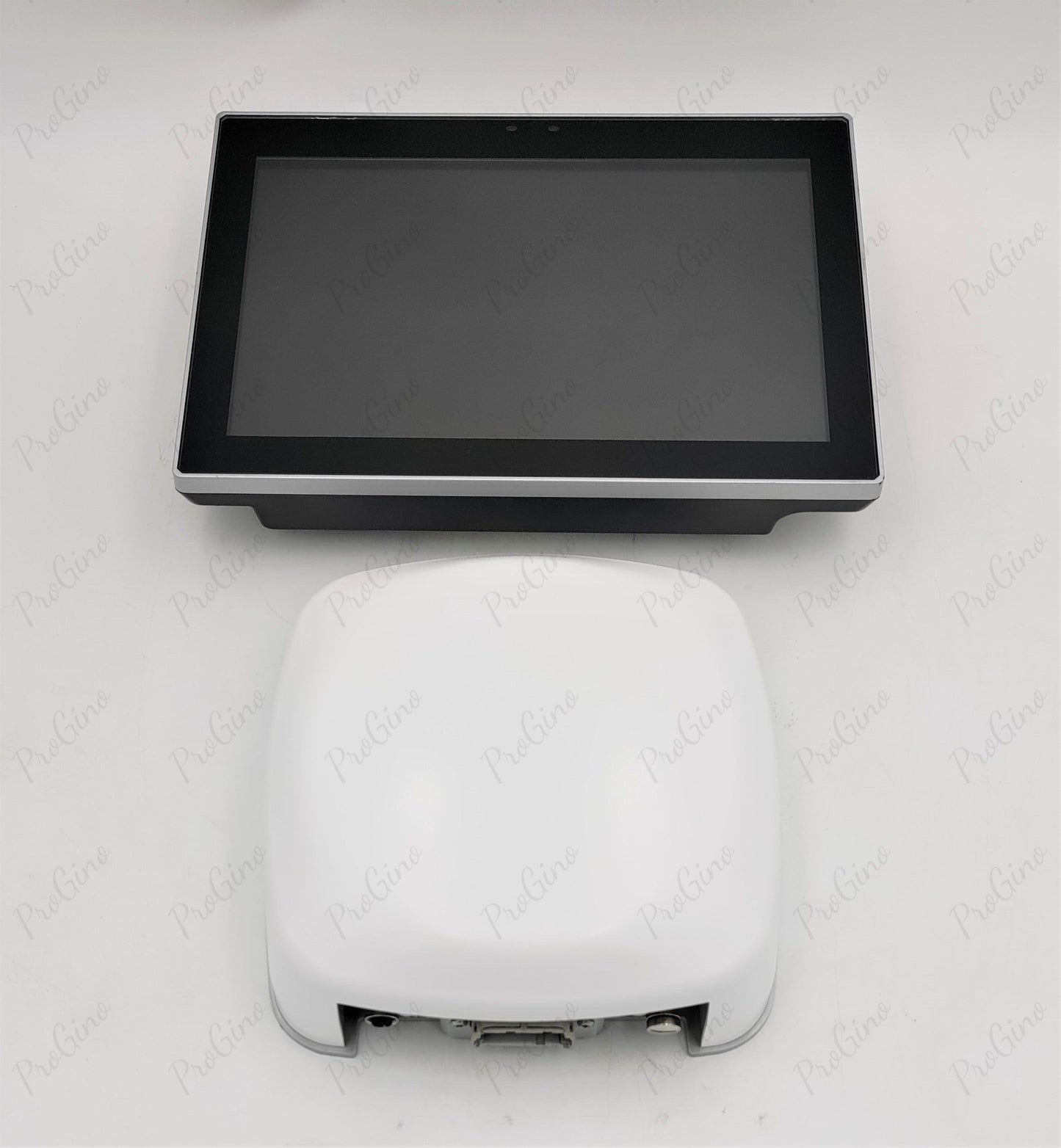

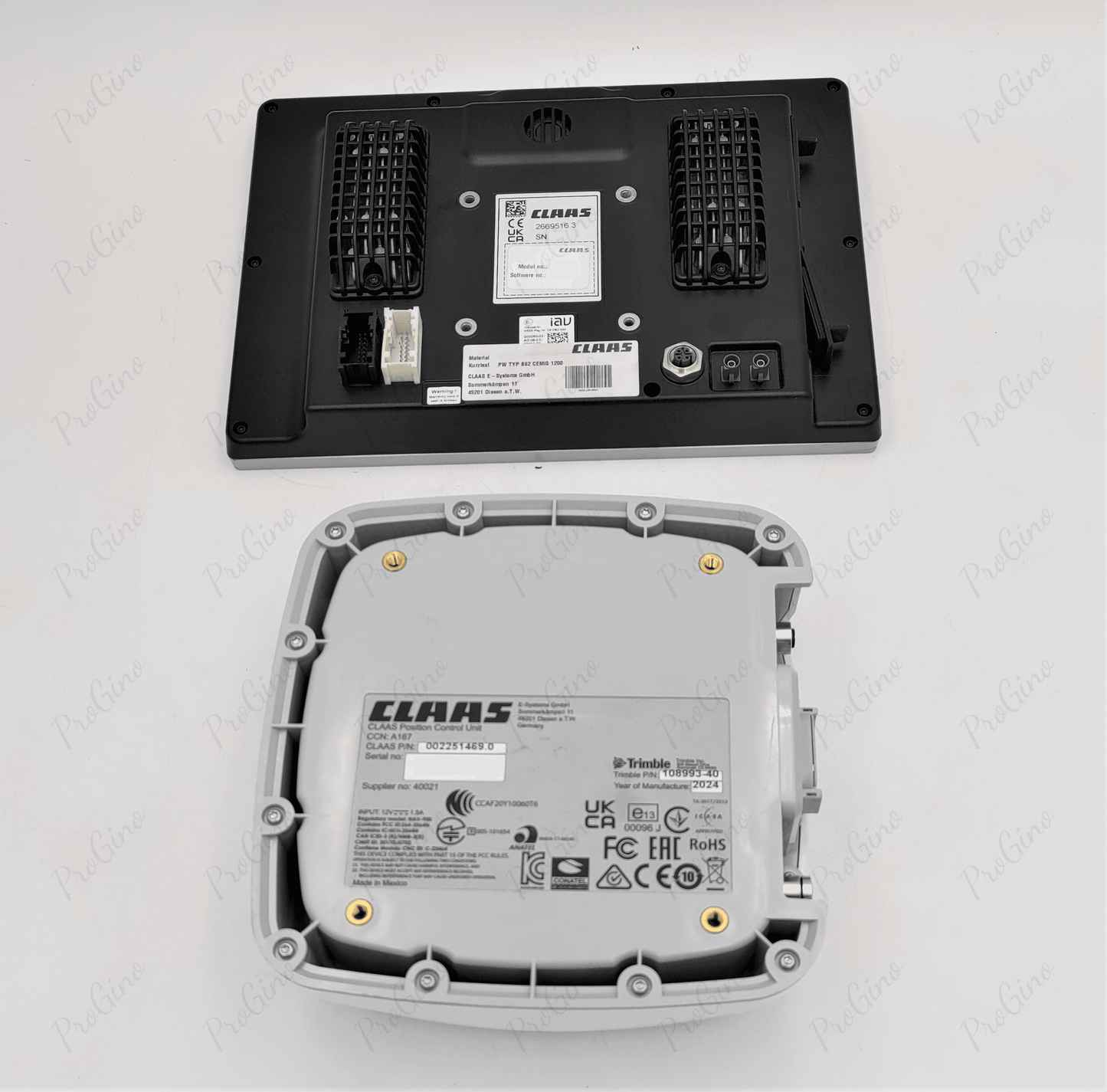

CLAAS Cebis A030 CEMIS 1200 2669516.3 Terminal 12" w/ CLAAS A167 Trimble NAV-900 002251469.0  108993

Condition used grade A+.

Lot contain:

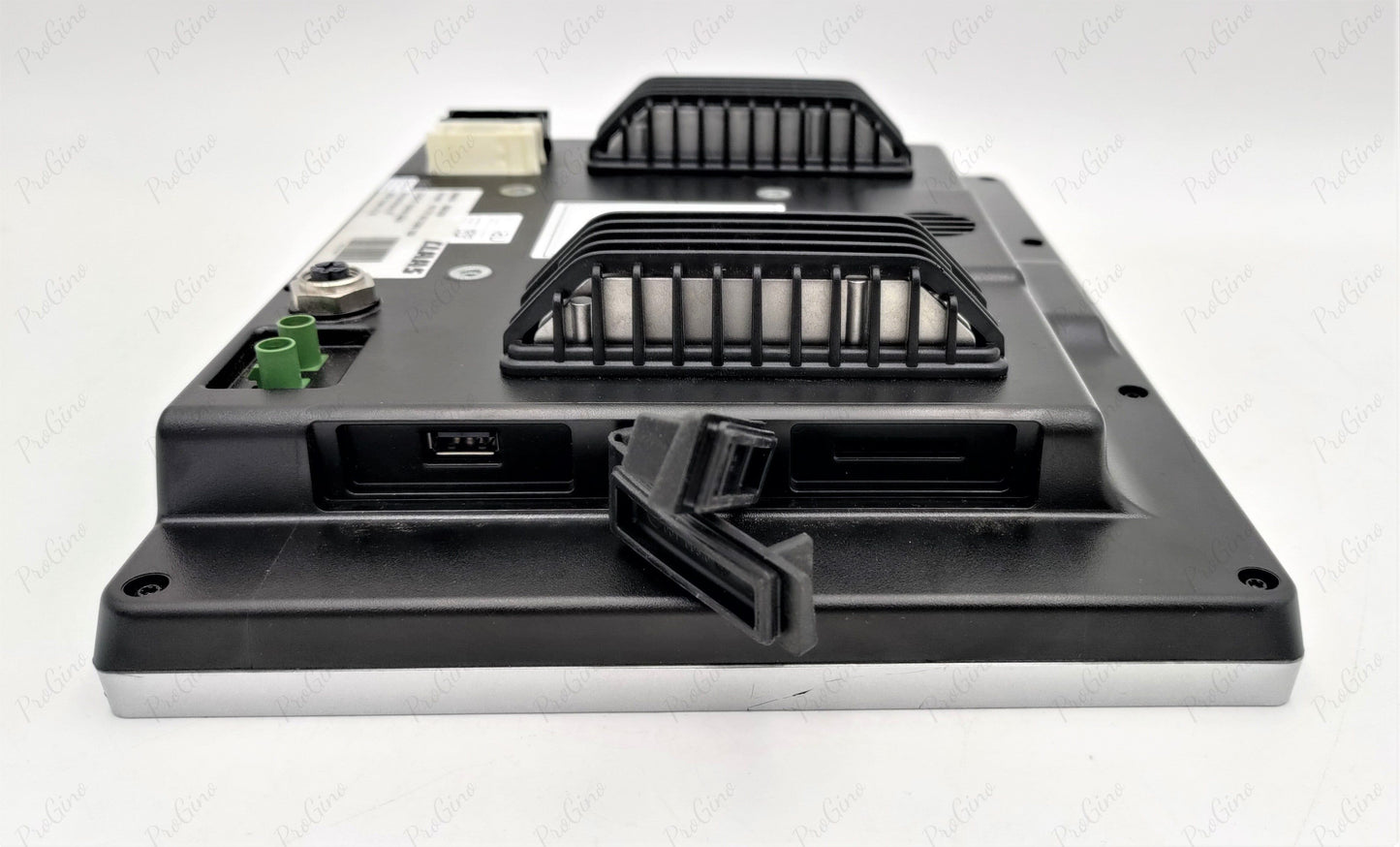

  • 1pcs x CLAAS Cebis A030 CEMIS 1200 2669516.3 Terminal 12"
  • 1pcs x CLAAS A167 Trimble NAV-900 002251469.0  108993

CEMIS 1200 sets the new standard for precision farming at CLAAS.

Following its introduction in summer 2021 on the TRION model, the new CLAAS CEMIS 1200 is now available for LEXION, JAGUAR and CLAAS tractors. In addition to automated steering, it supports online documentation, ISOBUS and TASK controller applications, section control and variable rate management.

The new CEMIS 1200, developed by CLAAS E-Systems, replaces the previous S10 universal terminal. The design, graphics and operation via the 12-inch multi-touch screen are based on CLAAS CEBIS, making operation intuitive and simple. The receiver and control technology used in the CEMIS 1200 was developed through a strategic partnership with Trimble.

Clear resolution and well-structured display

The CEMIS 1200 features a 12-inch high-brightness display with multi-touch operation and manual day/night switching. Work zones and viewing modes for automated control, regulatory control, and site-specific documentation can be freely configured. Quick Access provides direct, quick access to important functional areas and menus.

Multifunctional ISOBUS options

In addition to GPS PILOT for automated guidance, the CEMIS 1200 includes ISOBUS UT/AUX-N and ISO Task Controller TC-BAS as standard for controlling implements via ISOBUS, as well as online file transfer for data transfer for documentation purposes.

TC-BAS allows you to import and export work tasks with the corresponding tracks, field boundaries and activities in ISO-XML format in combination with your farm management program. When connected to TELEMATICS or the FMIS 365FarmNet and Omnia systems, work tasks can be exchanged online.

Additional functions available:

  • TC-SC for Section Control with compatible ISOBUS attachments such as seed drills, fertilizer spreaders, crop protection sprayers or cultivators. Up to 80 sections can be controlled.
  • TC-GEO for collecting, transmitting and mapping data as documentation and basis for field planning.
  • Variable Rate Application (VRA) for GPS-based application rate control during sowing, fertilizing or crop protection. The program maps are transferred to the task manager as ISO-XML tasks.

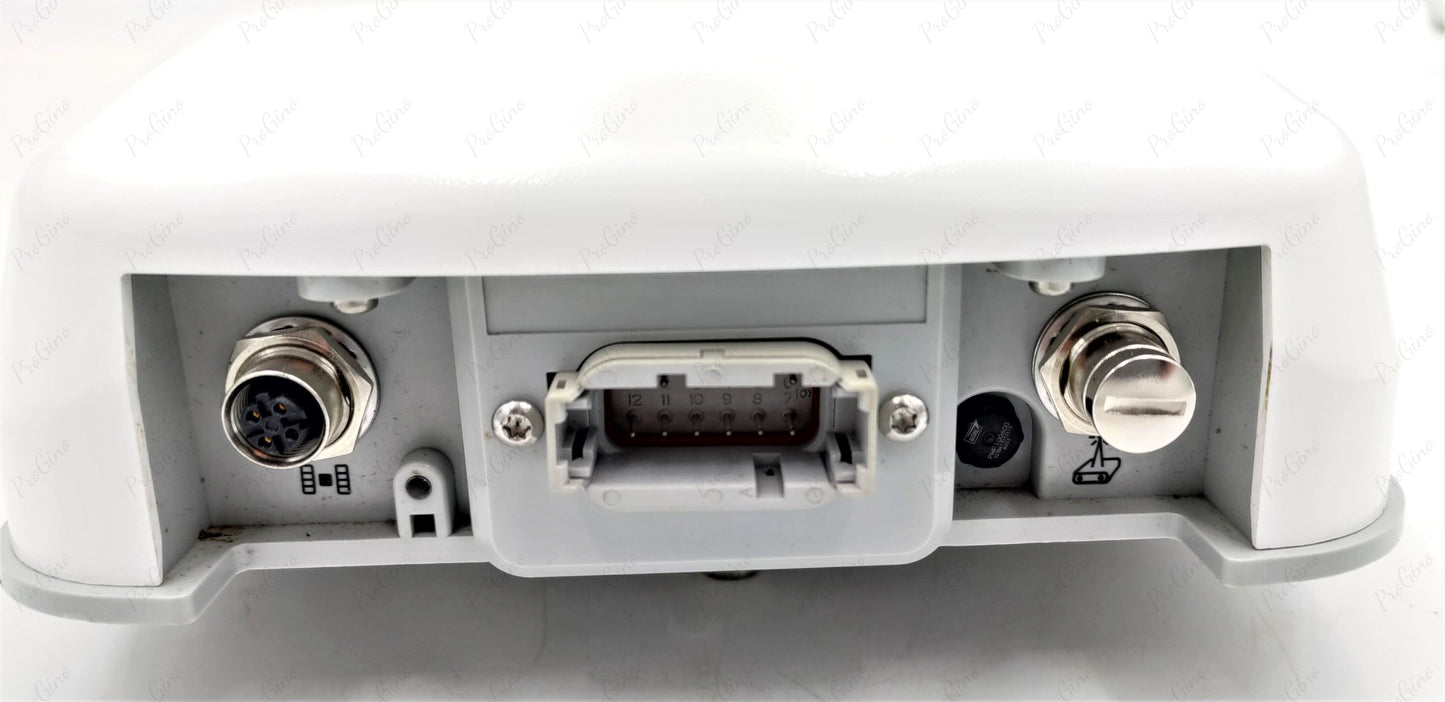

СLAAS A167 Trimble NAV-900 002251469.0 108993

Condition used grade A+.

The NAV-900 navigation controller is the most advanced GNSS receiver available today, providing maximum uptime and a wide range of accuracy from basic to high. It is designed to provide positioning and heading guidance, including automatic driving, and is mounted on the roof of most agricultural vehicles.


  •     Receive all correction signals and work with multiple constellations: GPS, GLONASS, Galileo, Beidou and QZSS
  •     Built-in Bluetooth for modem and device connectivity
  •     Simplified setup with fewer components
  •     Combine with one of the GFX series displays for automatic control and precision farming

Easy installation

When installing an automated driving system on most vehicles, the NAV-900 navigation controller, along with a compatible GFX Series display, installs in just half a day, and in less than two hours when using manual course guidance, avoiding costly machine downtime.

Powerful GNSS processor

The new navigation controller is equipped with Trimble's most powerful GNSS processor. By receiving signals from a large number of satellites in multiple constellations, high performance is ensured even in challenging environments and RTX initialization times are reduced.


Please, send a message if you have any questions.

Ready to use ✅

Fully working ✅

Fast worldwide 🌎 shipping with tracking
