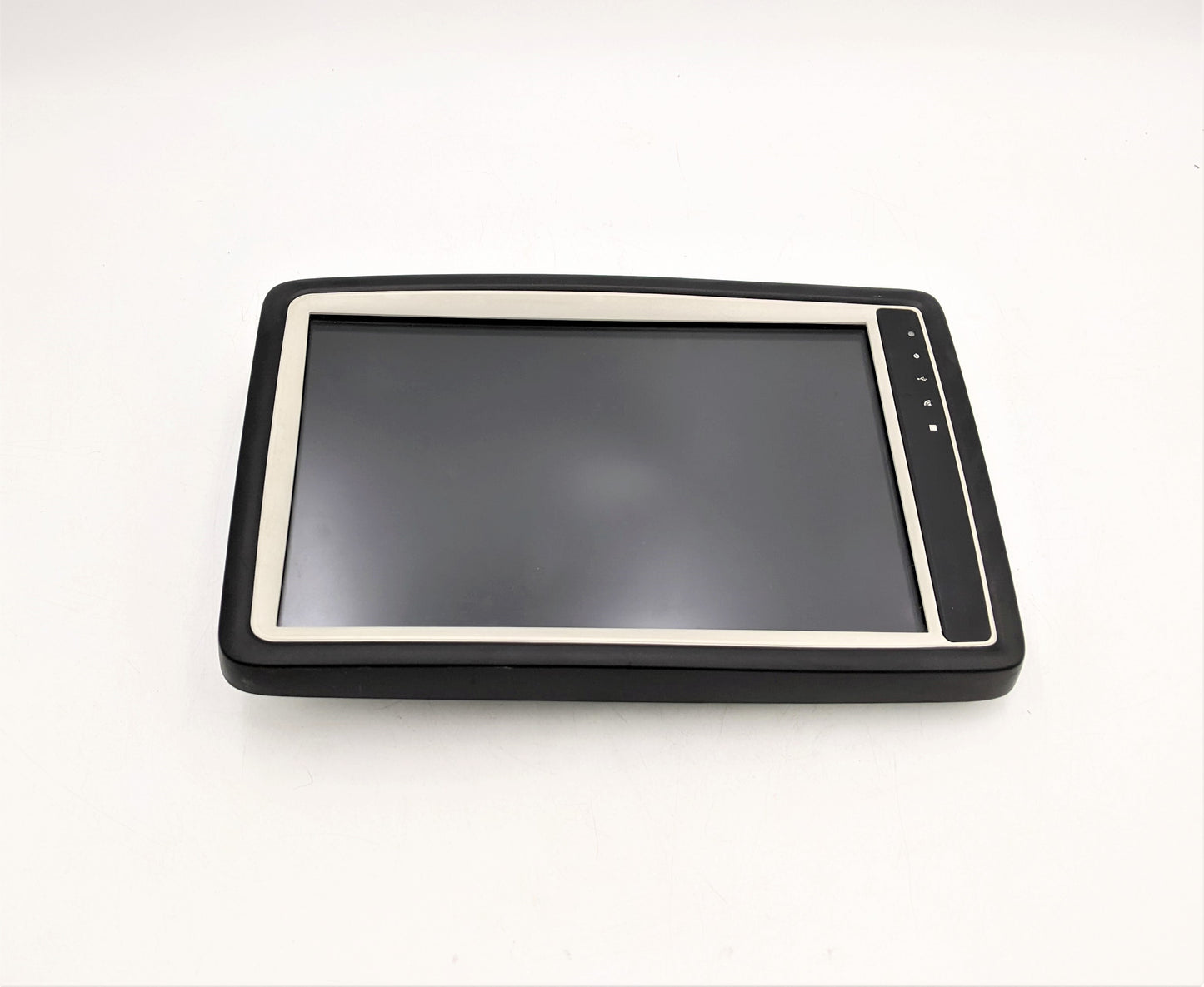

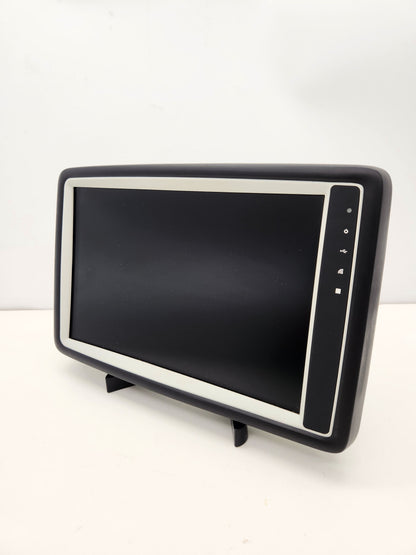

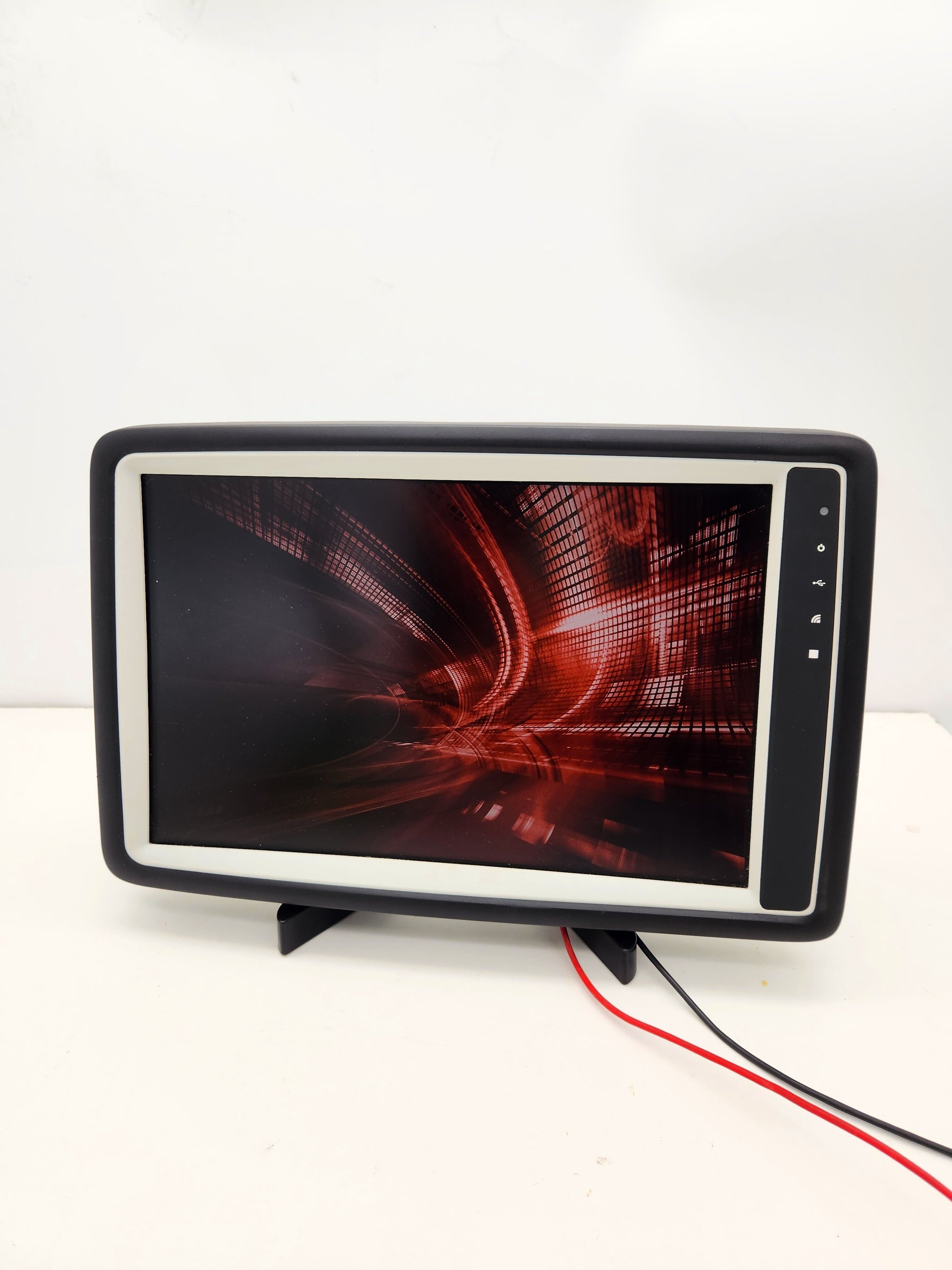

TOPCON OPUS A8 ECO BASIC DISPLAY 12,1 inch OPUSA8EN1CANB000

TOPCON OPUS A8 ECO BASIC DISPLAY 12,1 inch OPUSA8EN1CANB000

Normaler Preis $1,250.00 USD
Normaler Preis Verkaufspreis $1,250.00 USD
Sale Ausverkauft

TOPCON OPUS A8 ECO BASIC DISPLAY 12,1 inch OPUSA8EN1CANB000

Condition grade A+.

Ready to use ✅

Fast worldwide 🌎 shipping with tracking

Supported:

  • OPUS Projektor

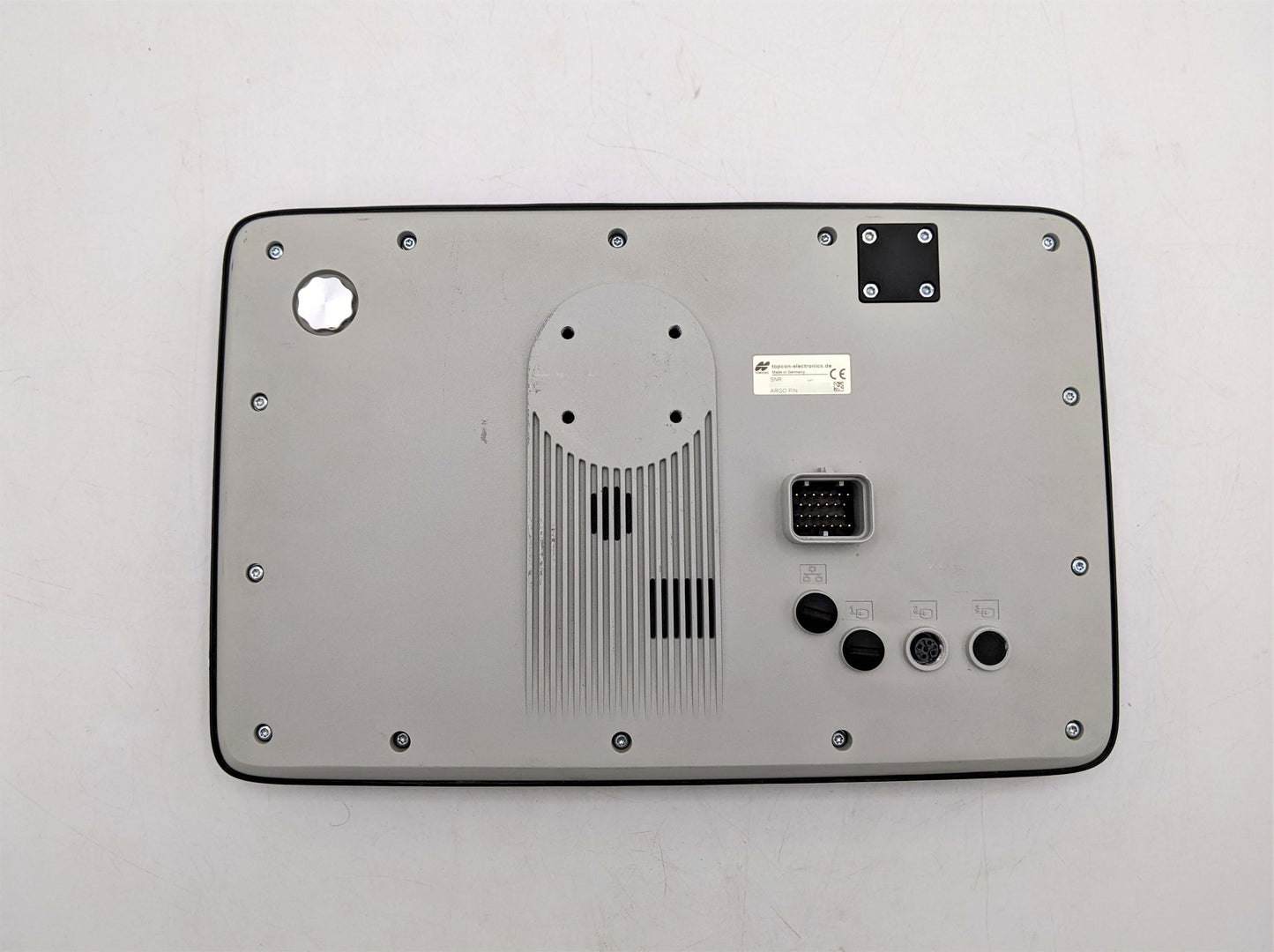

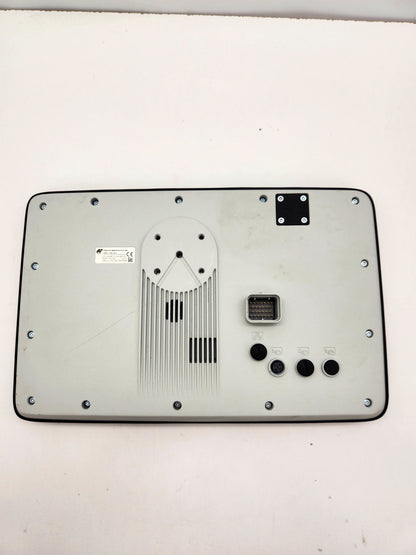

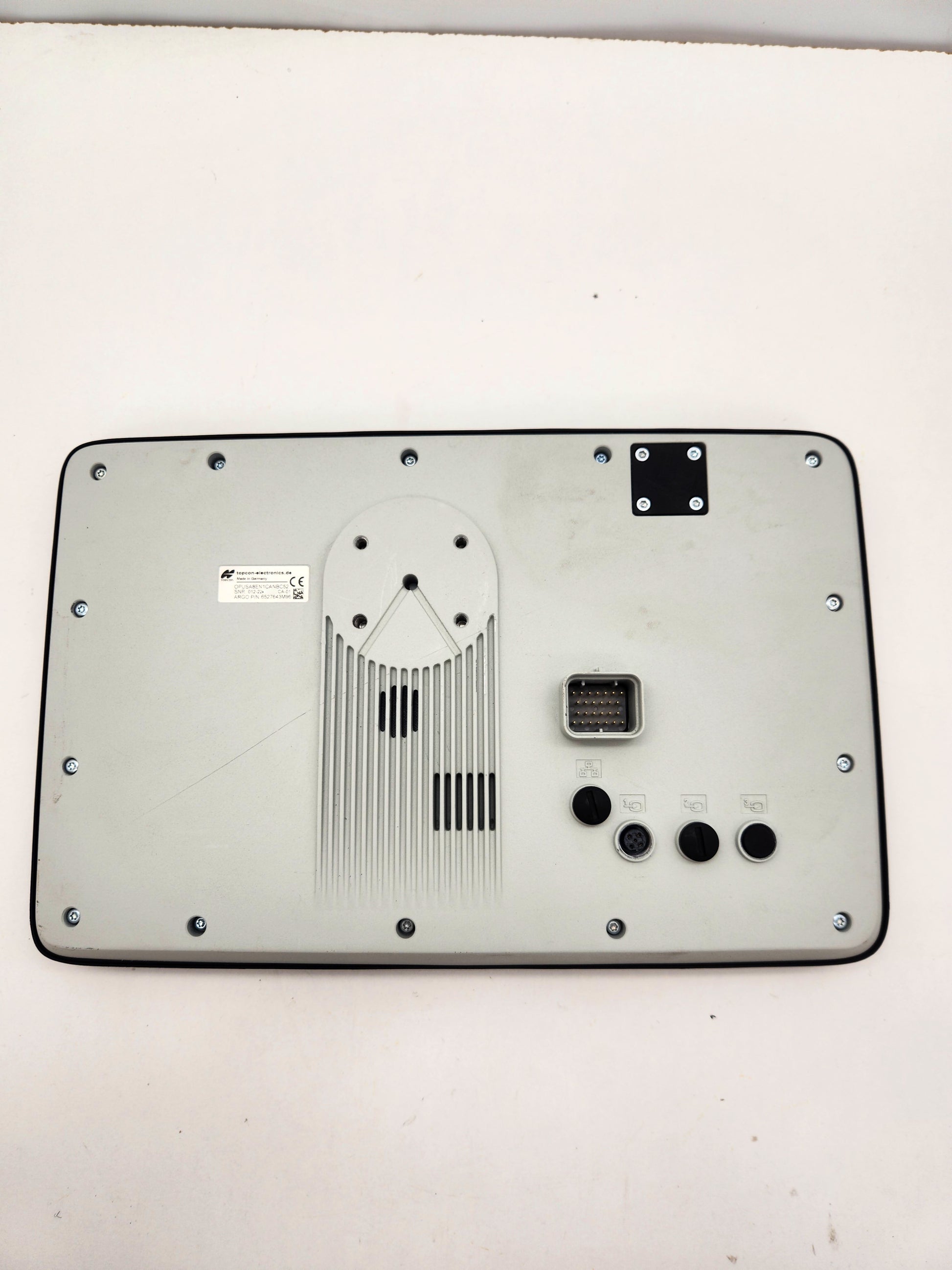

Housing:

  • Aluminium back-housing, plastic front-housing,
    colored light grey (RAL 7035) with black rubber frame.

Mounting:

  • Landscape or portrait
  • Standalone
  • In-dash

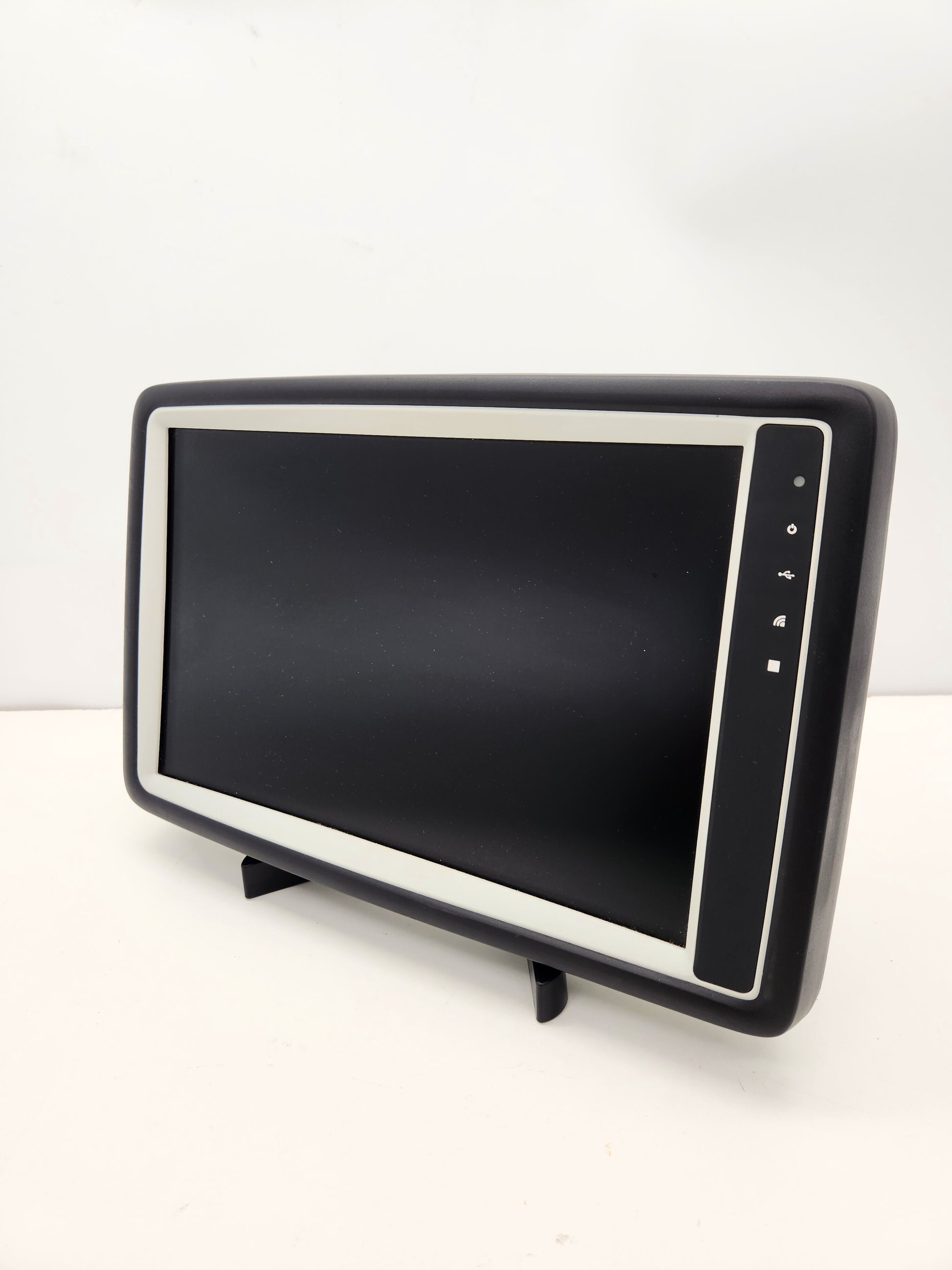

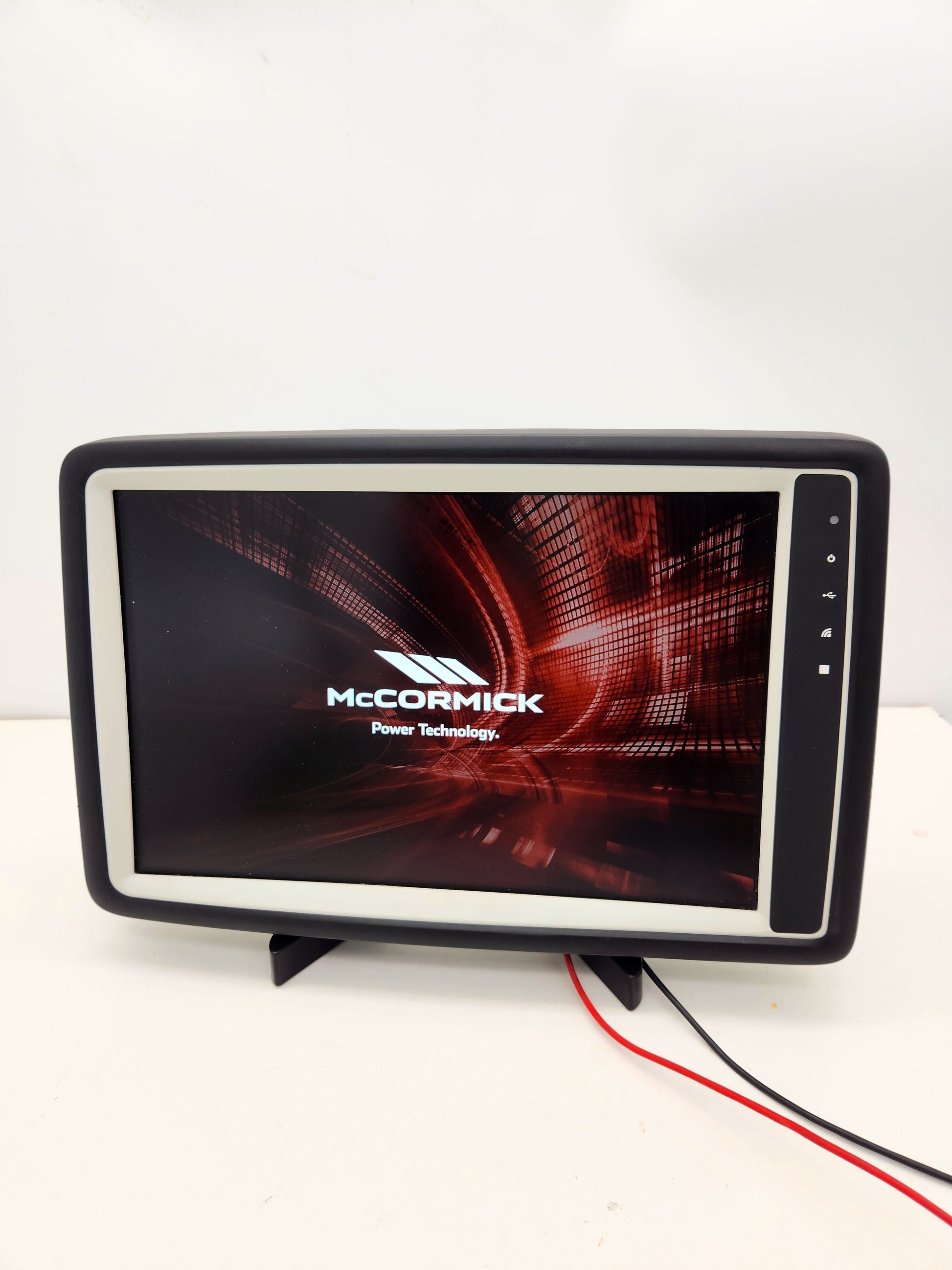

Display:

  • Type: TFT Color Graphic LCD with LED
    backlight
  • Size: 12.1“, 261 mm (W) x 163 mm (H)
  • Resolution: 1280 x 800 px (WXGA), 16:10
  • Colors: 16,7 Mio
  • Brightness: typ. 1000 cd/m²
  • Contrast Ratio: typ. 750:1

Input Devices:

  • Touch PCT (Projected Capacitive Touch)

Indicators and Sensors:

  • Light sensor
  • 1 Multicolor-LED
  • 3 Status-LED’s

Processor platform:

  • CPU: NXP I.MX6®, solo core, 800 MHz
  • Mass storage: min. 4 GB
  • RAM: 512 MByte
  • RTC: Buffered by gold cap
  • Speaker • 80 dB(A) in 1m distance @ 1kHz

Power supply:

  • Operating voltage range: 9 … 36 V DC
  • Protection: Short circuit protection
  • Overvoltage resistance: 48V for max. 2 minutes
  • Inverse polarity protection: Up to -48 V DC for
    max. 5 minutes

In the OPUS A8e, we have combined the most brilliant technology into a single unit – with maximum performance and a sophisticated design. Unlike the OPUS A8 Standard, the OPUS A8e is operated entirely without keys. This is achieved through a high-quality touch panel with an analog resistive glass surface. A distinguishing feature of the OPUS A8e is its scalable process architecture. Its high performance enables the device to simultaneously display all safety factors on the video raster screen. The OPUS A8e’s great look is thanks to an extravagantly designed aluminium casing. The OPUS A8e is therefore the ideal device for demanding users and applications.
