Trimble receiver antena Ag372 DGPS/OmniStar RTX/RTK

Trimble receiver antena Ag372 DGPS/OmniStar RTX/RTK

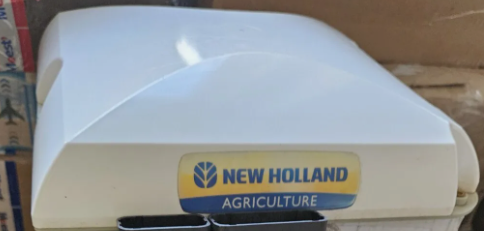

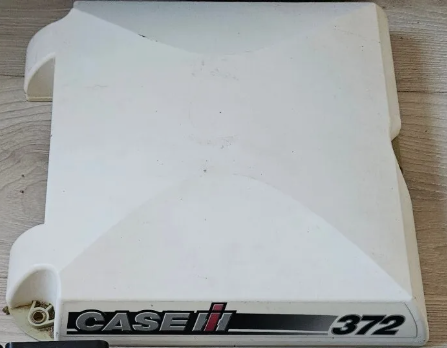

The Trimble AG-372 Active GNSS Antenna is a dual-frequency GPS and GLONASS receiver combined with an antenna that provides excellent accuracy and stability for precision farming operations. This receiver is more advanced and more productive than its younger brothers, the Trimble AgGPS 252 and 262. This model can receive a signal from 44 satellites, while using up to 220 channels. Supports NMEA-0183, NMEA-2000 protocol.

Accuracy of the Trimble 372 receiver:

DGPS: SBAS (WAAS, EGNOS) — 15-20 sm
RTX RangePoint - 10-15 sm
RTX CenterPoint  — 3.8 sm

RTK / VRS - 2.5 sm

Main attributes
Manufactured by Trimble
Country of manufacture USA
Signals L1, L2, C/A code, L-Band, DGPS
Data refresh rate 1 Hz, 5 Hz, 10 Hz
Cold start < 2.5 min.
Warm start < 30 sec.
The case is shockproof, dustproof and waterproof, with protected connectors
Ports three - RS-232, two - ISO 11783/J1939 (CAN 2.0 B)
FCC Class A, CE, e-mark certification
